NoSQL Workbench - Amazon DynamoDB Leaderboard

NoSQL Workbench - Amazon DynamoDB Leaderboard

Get the code for this post!

t04glovern/aws-dynamodb-leaderboard

Preface

DynamoDB is an AWS fully managed NoSQL database that is well known for being very simple to use. This simplicity is great for newcomers, as long as the problem being solved doesn't require complex schemas. Issues arise for most people when trying to design systems with multiple tables in mind. This is usually where working with DynamoDB can become very complicated for newcomers.

In this post we will be covering off how you can make use of Amazon's new NoSQL Workbench tool to design DynamoDB schemas.

Goal

Throughout this post are going to be building a game leaderboard system on DynamoDB. This problem might seem simple, however there is some hidden complexity that will soon be apparent. To accomplish this we'll work through the following steps.

  • Download & Setup NoSQL Workbench
  • Design a DynamoDB Table
  • Import data using the SQL Import feature
  • Create a Global Secondary Index to retrieve high scores

NoSQL Workbench

NoSQL Workbench can be downloaded from here and is available on both Mac & Windows.

NoteUnfortunately there is no Linux client yet

Once installed open it up and have a look through the main interface

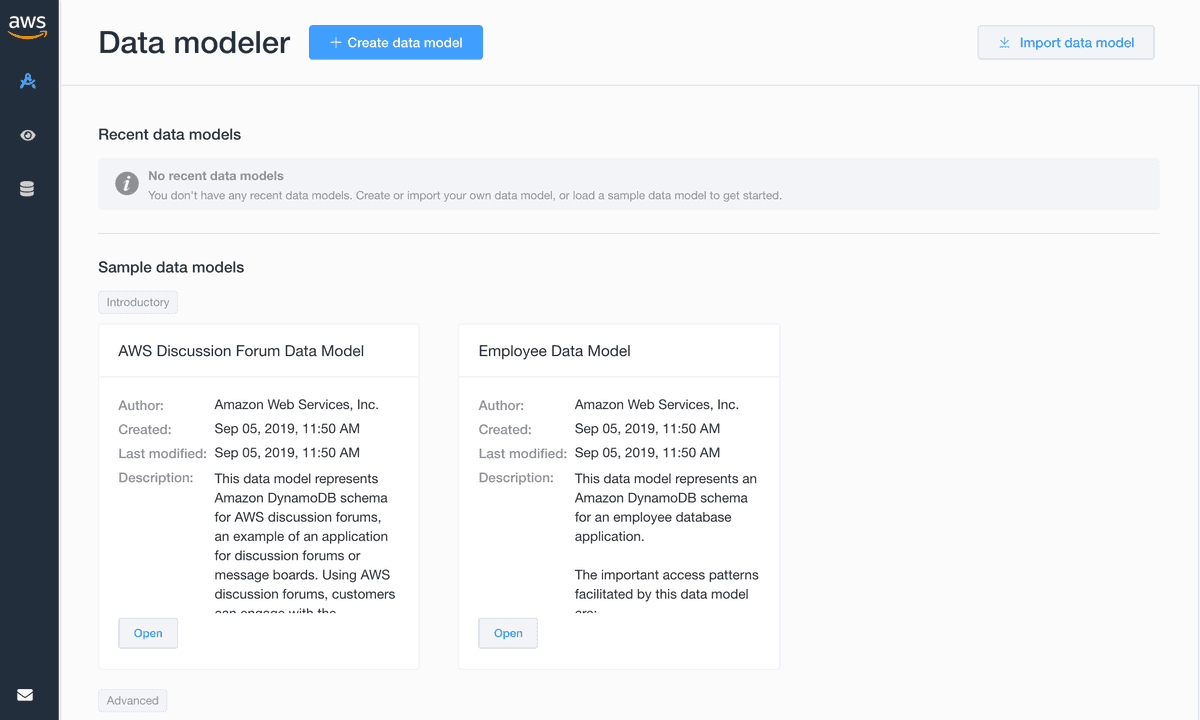

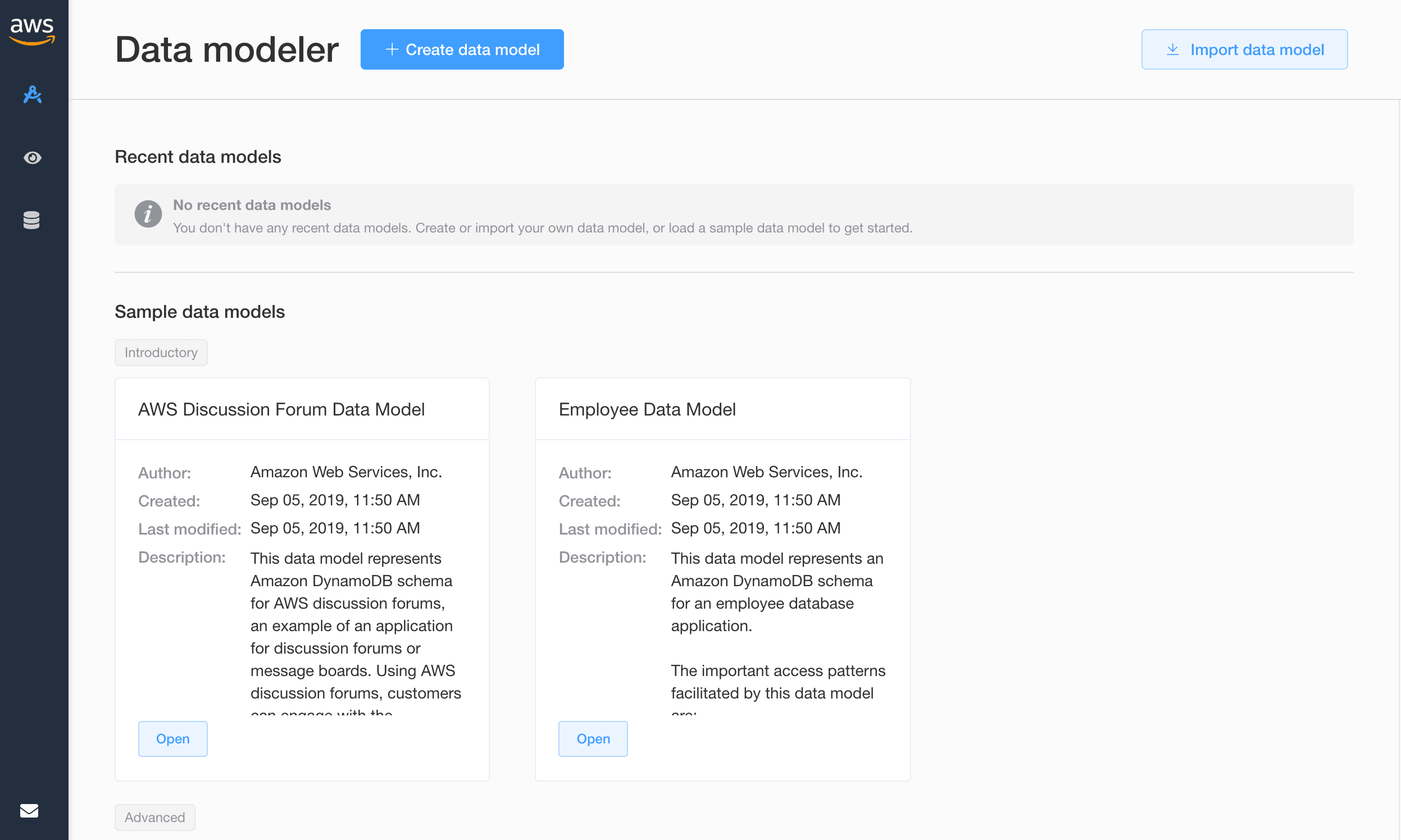

NoSQL Workbench main interface
NoSQL Workbench main interface

Design a Schema

Let's say that you are a mobile game startup that had created a very successful video game called AppleKart. AppleKart has a variety of game modes:

  • Grand Prix
  • Time Trial
  • Battle

Each of these modes have a multiplayer aspect in the format of a global scoreboard. We'd like to keep the data we're working with simple so it was decided that the unique key would be the users identifier (UserID). The problem we're faced with is that a score field needs to be stored for each game mode for each user.

First thought might be to do something seen below:

Leaderboard incorrect design
Leaderboard incorrect design

The problem here is that UserID is the only unique key we are given. When adding a new entry for a different game mode the previous entry will be overridden. Traditionally we probably would end up using a separate table for each game mode, however we aren't given this luxury in NoSQL land.

Instead we're able to make use of a Sort Key; which when paired with the primary key makes the entry unique.

Leaderboard correct design
Leaderboard correct design

Create Data Model

With the previous information in mind we can design a simple model using NoSQL Workbench. Start off by creating a new data model by clicking the button up the top of the Data modeler.

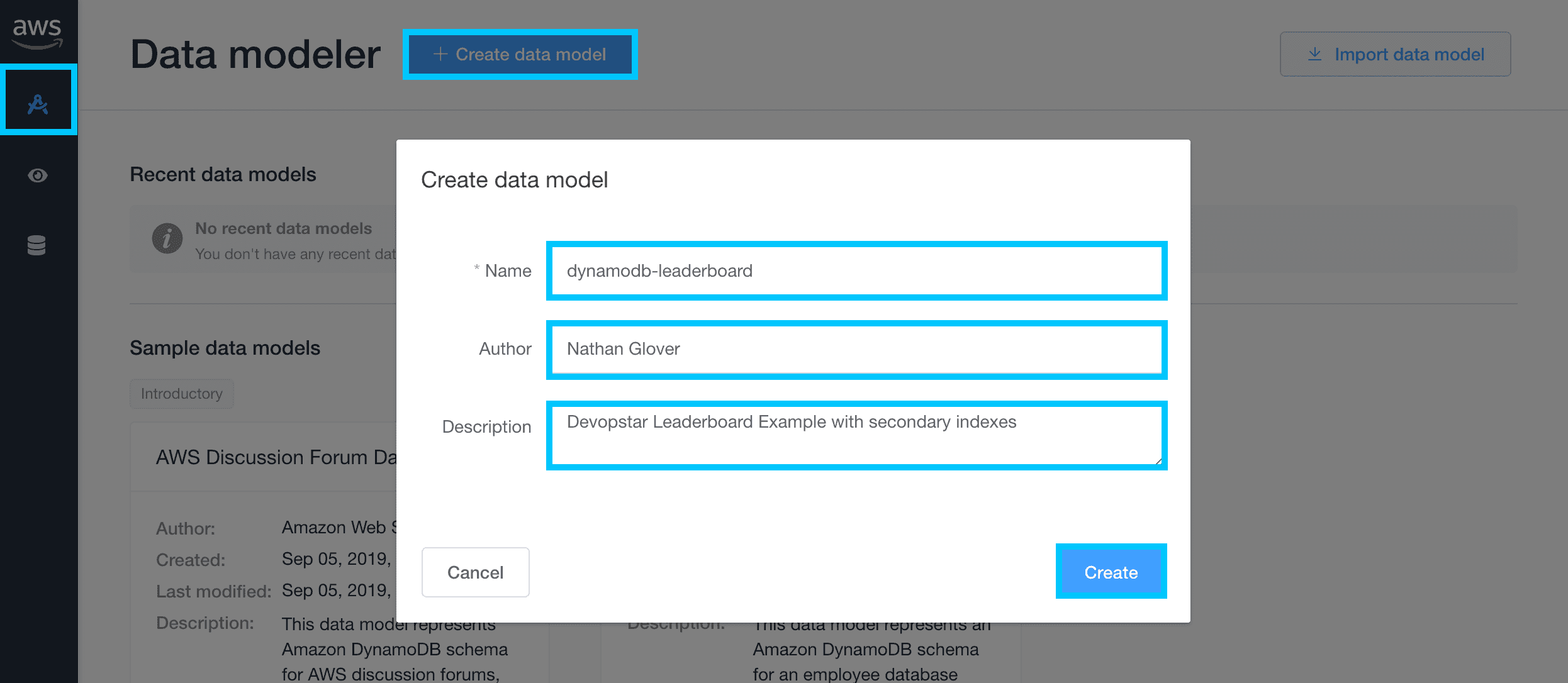

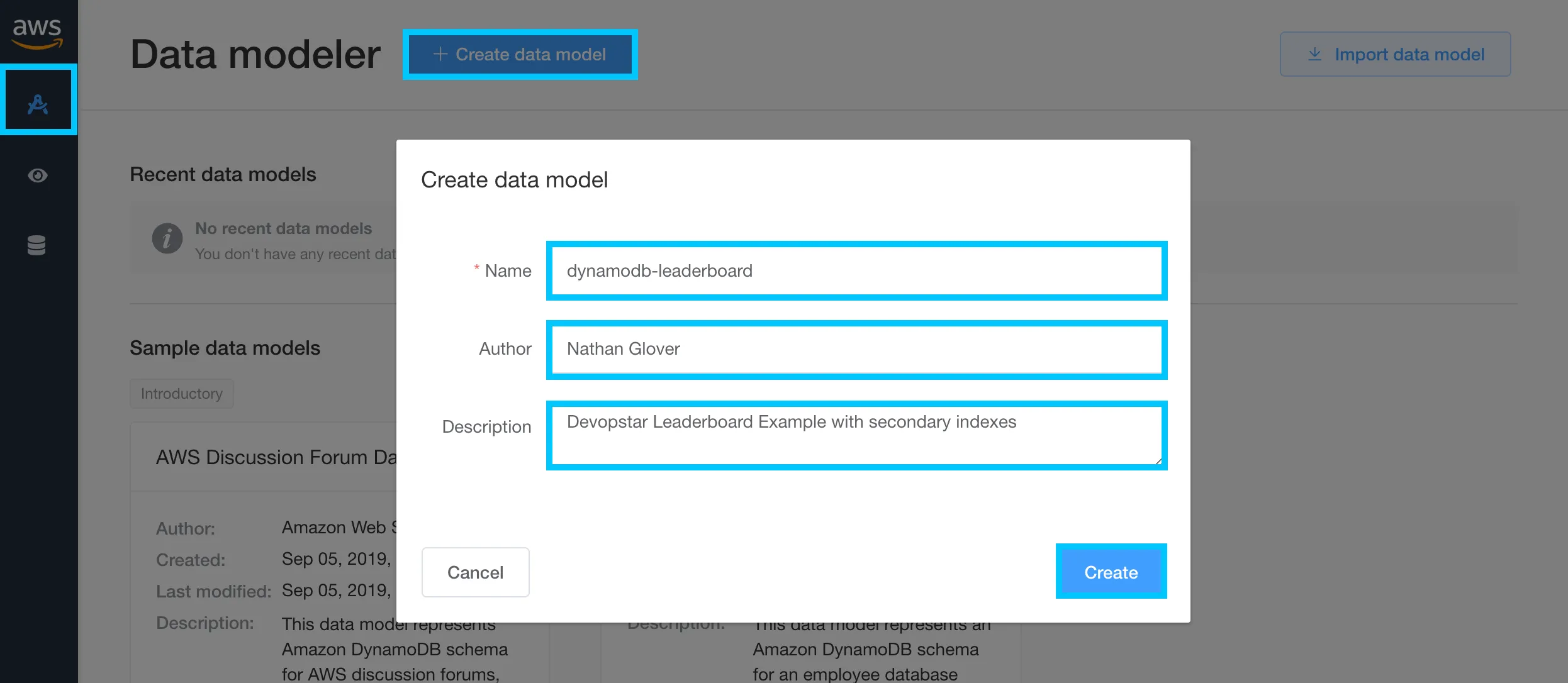

NoSQL Workbench create model
NoSQL Workbench create model

Next we can define our table attributes:

  • Table name: Leaderboard
  • Primary key: UserID
  • Sort key: GameMode
  • Other attributes:
    • TopScore
    • TopScoreDate

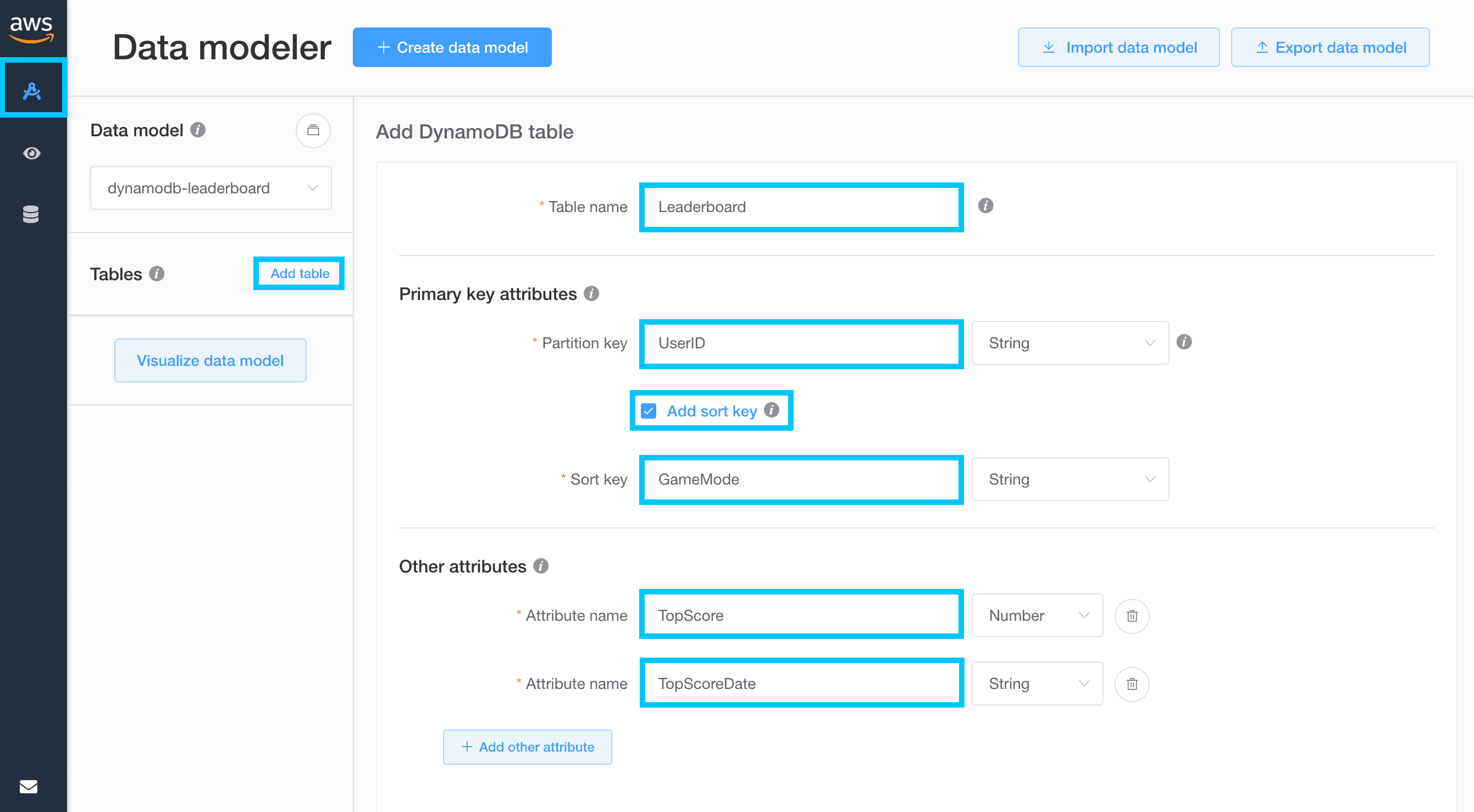

NoSQL Workbench define model
NoSQL Workbench define model

Create the table based on the inputs above and we'll move onto adding some data

Importing Sample Data

With the table model setup it's time to import some data to play with. To begin with navigate to the NoSQL Workbench Visualizer and select your Leaderboard table

Start by having a go manually importing data and you'll soon grow tired at the thought of having to add these by hand.

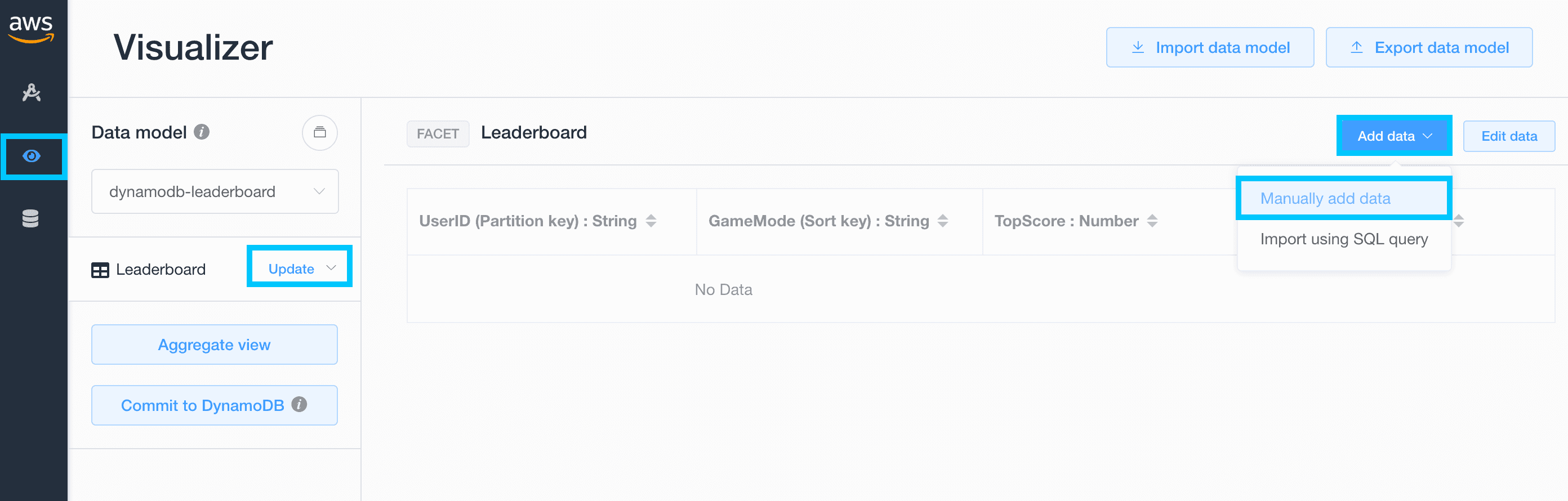

NoSQL Workbench manually add data
NoSQL Workbench manually add data

Luckily there's a second option to import using SQL queries. I've gone ahead and included a dockerized way of running a simple SQL server with data already.

NoteDocker & docker-compose will be required for this step

First pull down a copy of this repository and change into the directory

git clone https://github.com/t04glovern/aws-dynamodb-leaderboard
cd aws-dynamodb-leaderboard

Then use docker-compose up -d to bring up the SQL container followed by docker ps -a to view the status.

docker-compose up -d
# Creating network "aws-dynamodb-leaderboard_default" with the default driver
# Pulling db (mysql:5.7)...
# 5.7: Pulling from library/mysql
# 8f91359f1fff: Pull complete
# 6bbb1c853362: Pull complete
# e6e554c0af6f: Pull complete
# f391c1a77330: Pull complete
# 414a8a88eabc: Pull complete
# fee78658f4dd: Pull complete
# 9568f6bff01b: Pull complete
# 76041efb6f83: Pull complete
# ea54dbd83183: Pull complete
# 566857d8f022: Pull complete
# 01c09495c6e7: Pull complete
# Digest: sha256:f7985e36c668bb862a0e506f4ef9acdd1254cdf690469816f99633898895f7fa
# Status: Downloaded newer image for mysql:5.7
# Creating aws-dynamodb-leaderboard_db_1 ... done

docker ps -a
# CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                               NAMES
# f3430e53ff51        mysql:5.7           "docker-entrypoint.s…"   18 seconds ago      Up 17 seconds       0.0.0.0:3306->3306/tcp, 33060/tcp   aws-dynamodb-leaderboard_db_1

Head back to NoSQL Workbench and now open import data from SQL database.

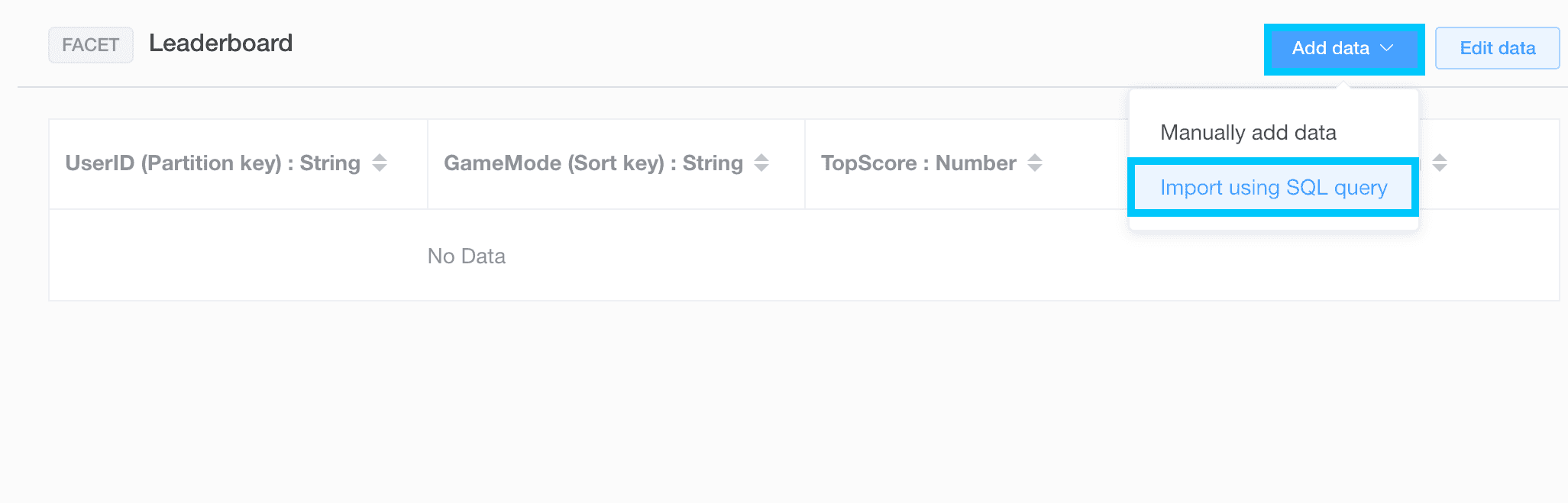

NoSQL Workbench import from SQL
NoSQL Workbench import from SQL

You to define a statement to be run in-order to import the data. In our case it can be found below:

select UserID as UserID, GameMode as GameMode, TopScore, TopScoreDate from devopstar.LeaderboardItems;

I've included an example of how to remap keys by using the as operator. Click Import to proceed to the next modal that will prompt for SQL connection details

  • Database: MySQL
  • Hostname: localhost
  • User Name: devopstar
  • Password: devopstar

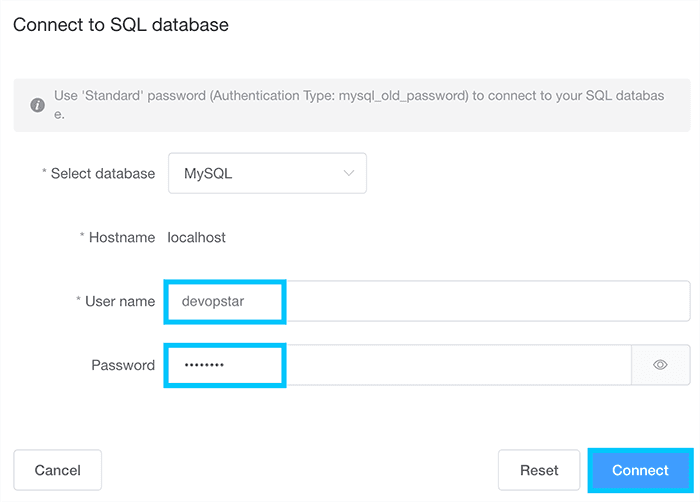

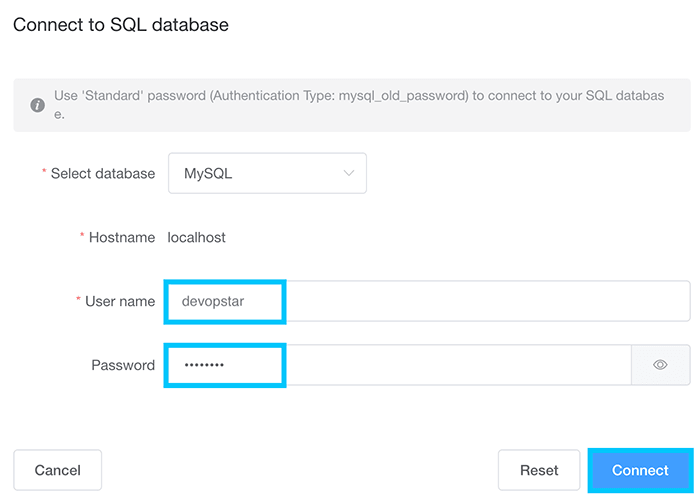

NoSQL Workbench SQL connection details
NoSQL Workbench SQL connection details

Once you receive the success prompt you can click Import again to view the results of the query

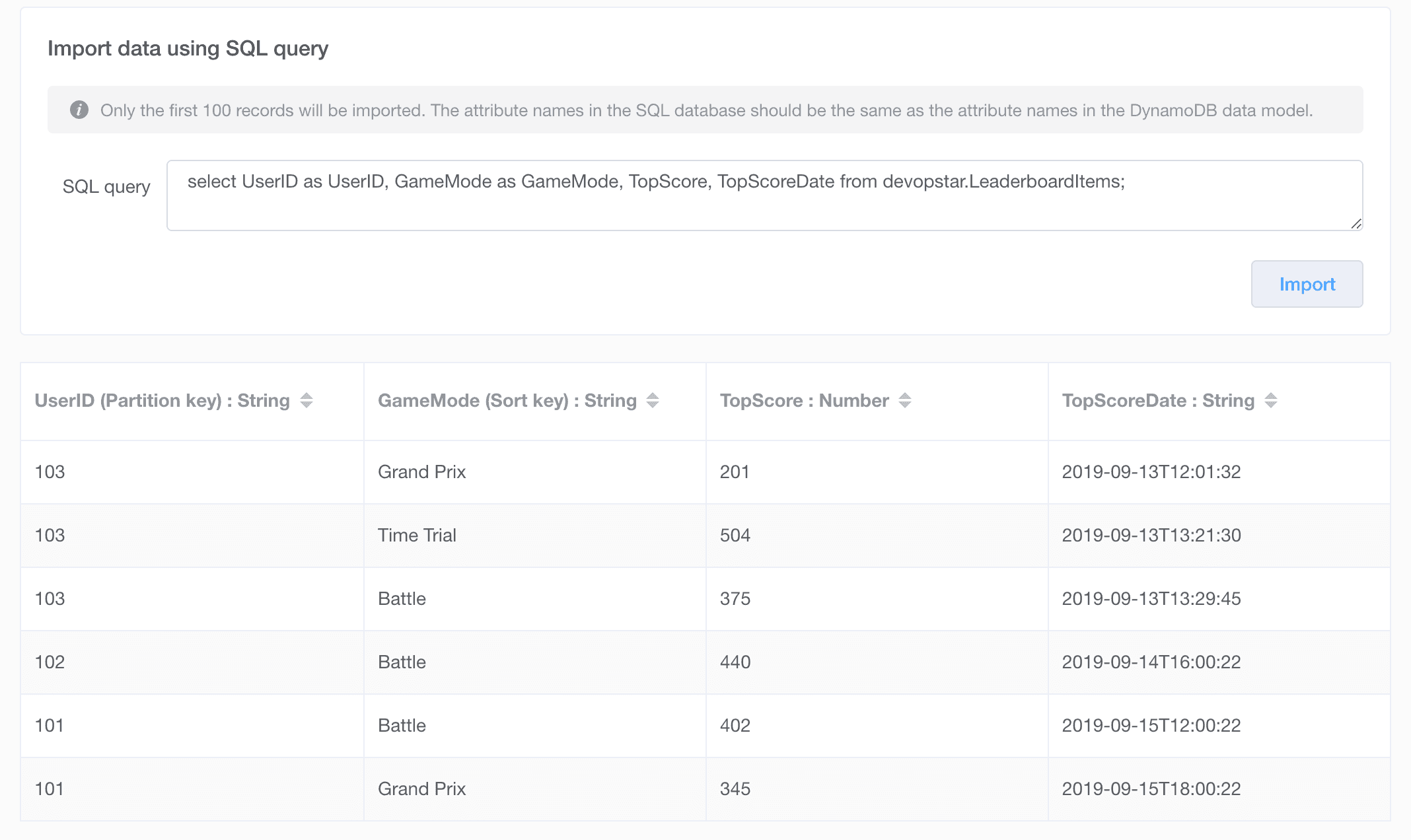

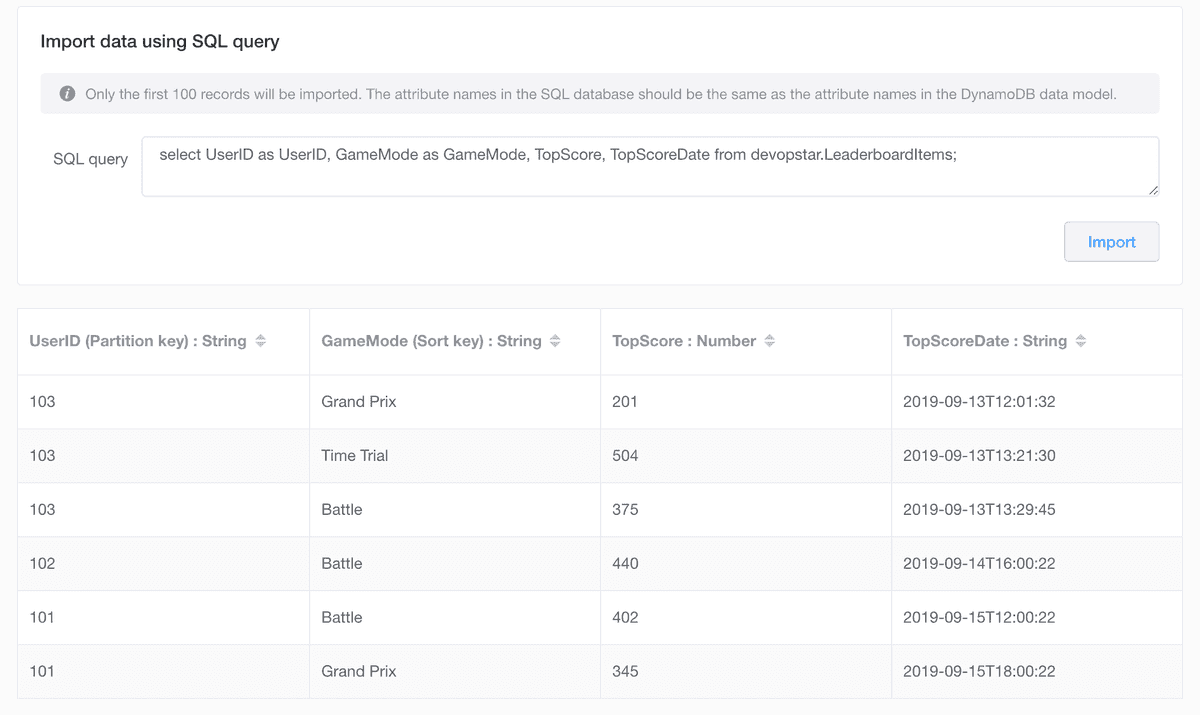

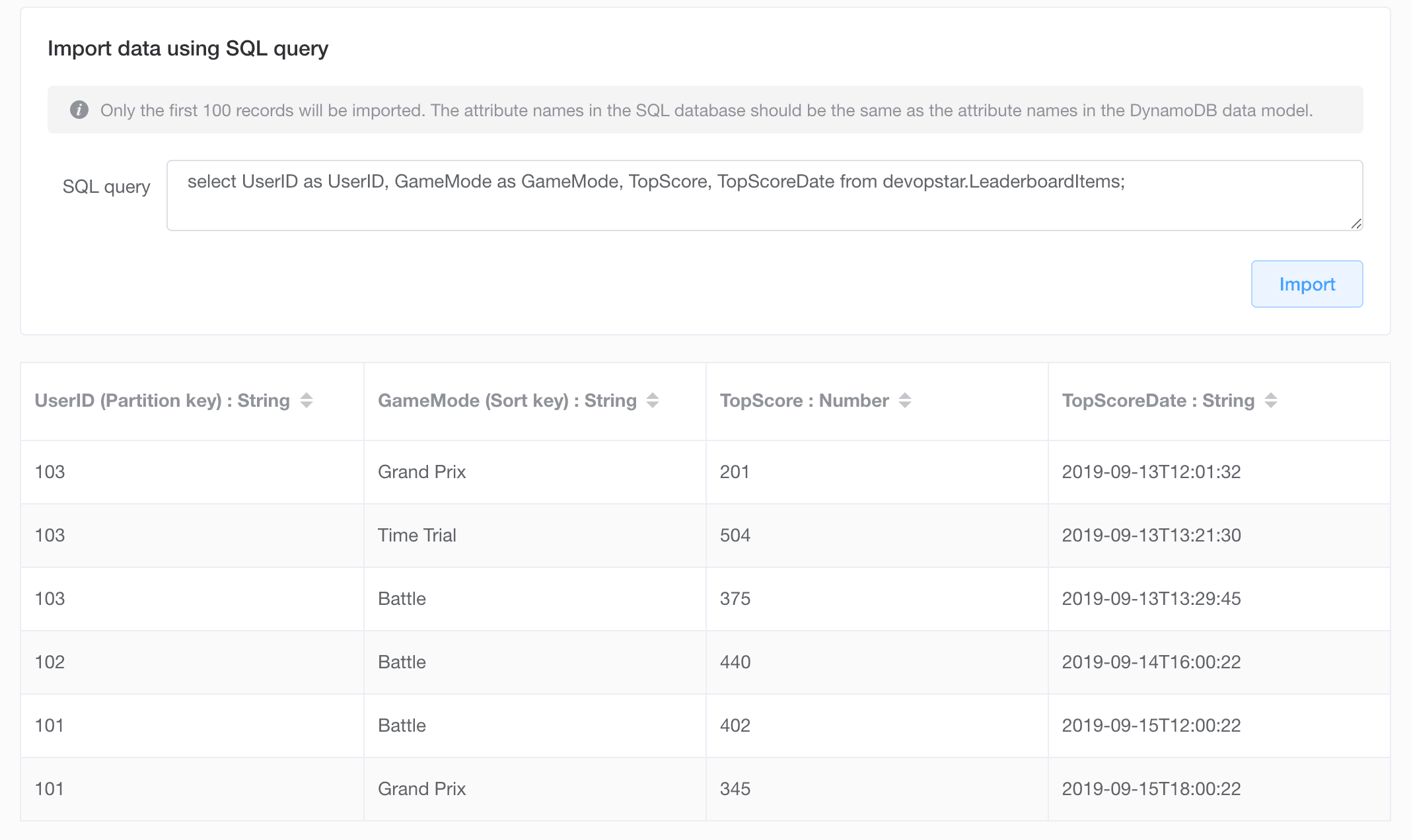

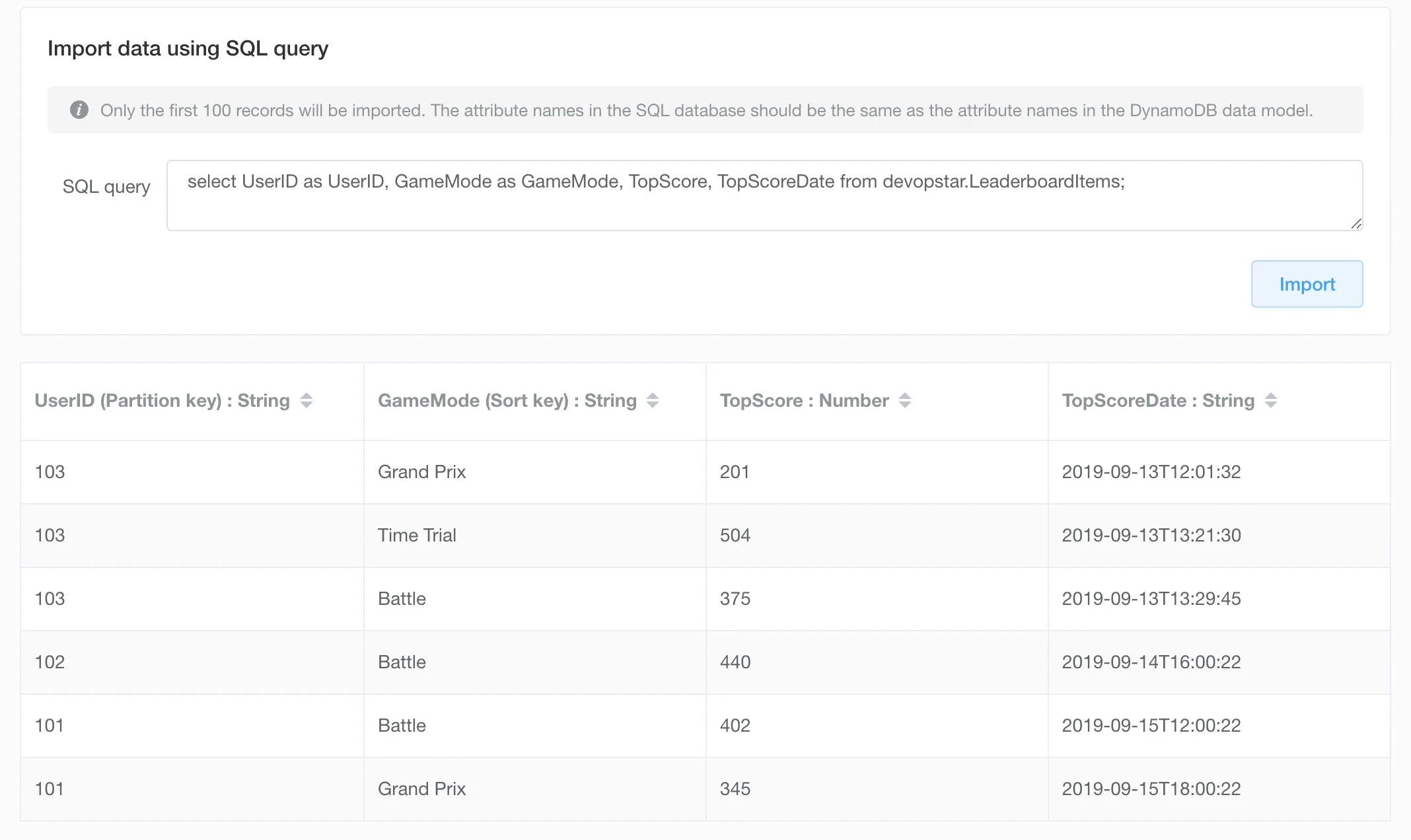

NoSQL Workbench SQL data import
NoSQL Workbench SQL data import

Check that the data imported successfully by clicking Update then Aggregate view on the Visualizer tab

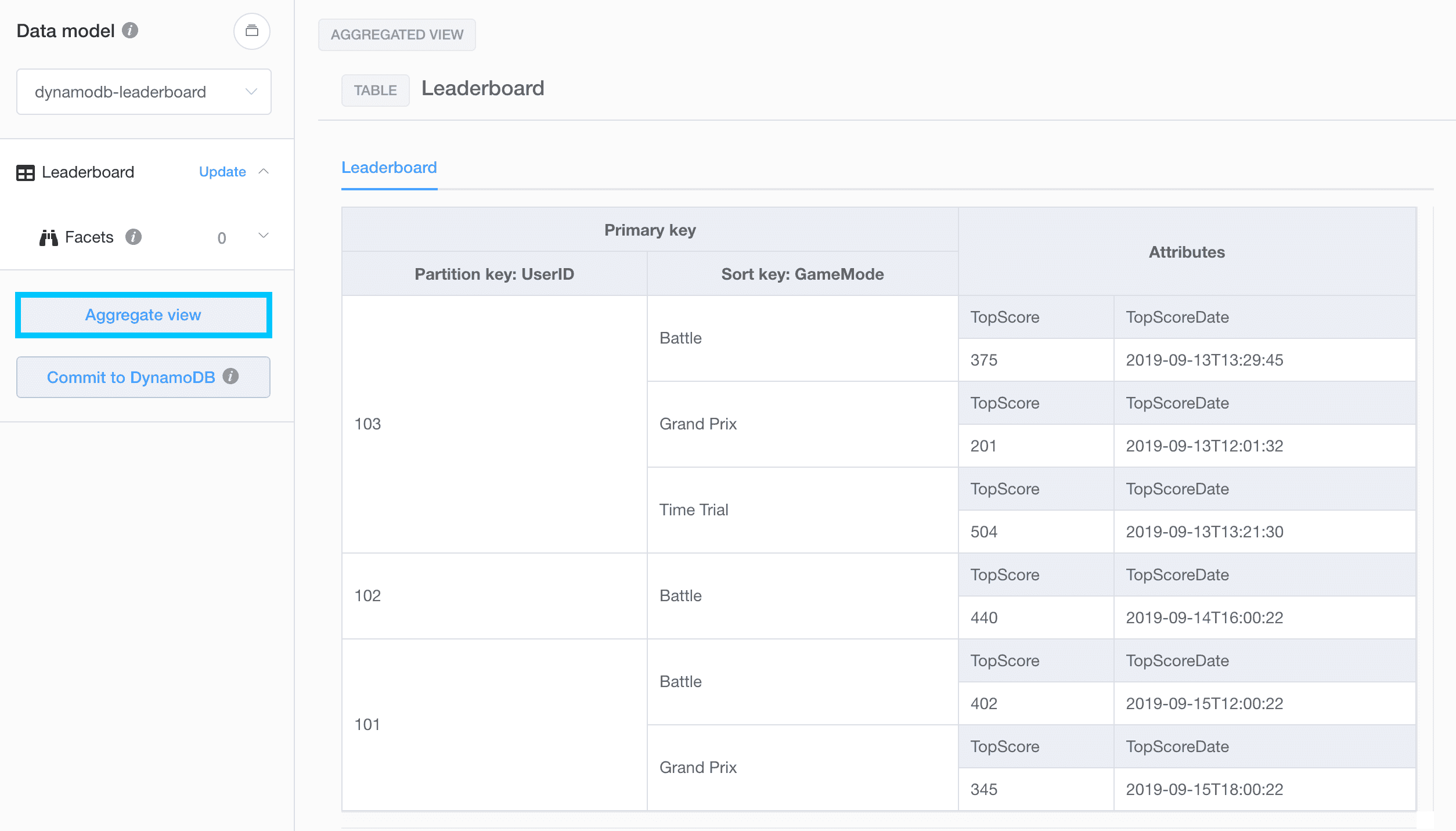

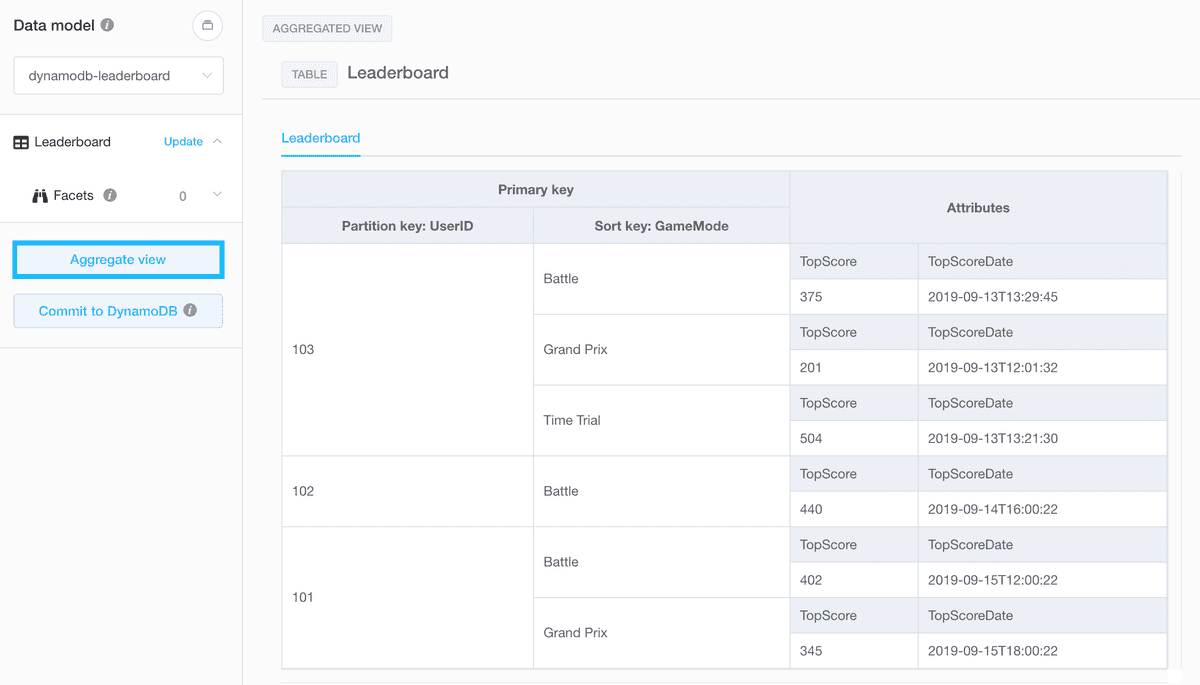

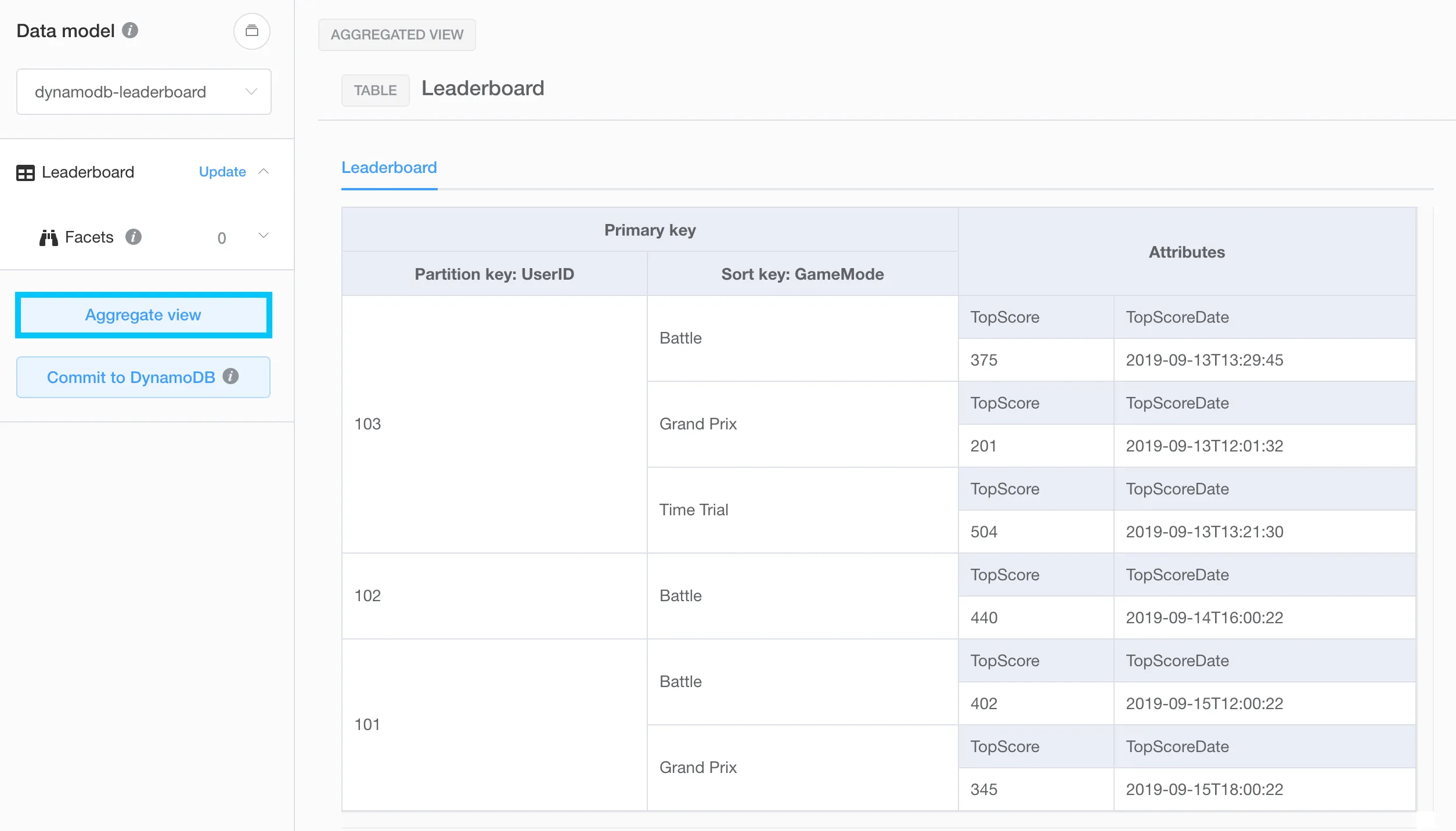

NoSQL Workbench aggregate view of data
NoSQL Workbench aggregate view of data

Global Secondary Index

Although it might look impressive we have yet to solve any major problems. The main issue we will inevitably face is how to retrieve the top score of a given game mode?

This is another example of where people might go and use a second table for rankings. Instead of doing that, we can make use of Global Secondary Indexes (GSI) to create a different way of accessing our data. Seen below is how we can accomplish this:

High Score Global Secondary Index
High Score Global Secondary Index

This index will allow us to sort TopScore attributes for each given game mode. Let's edit our existing model to include the new index

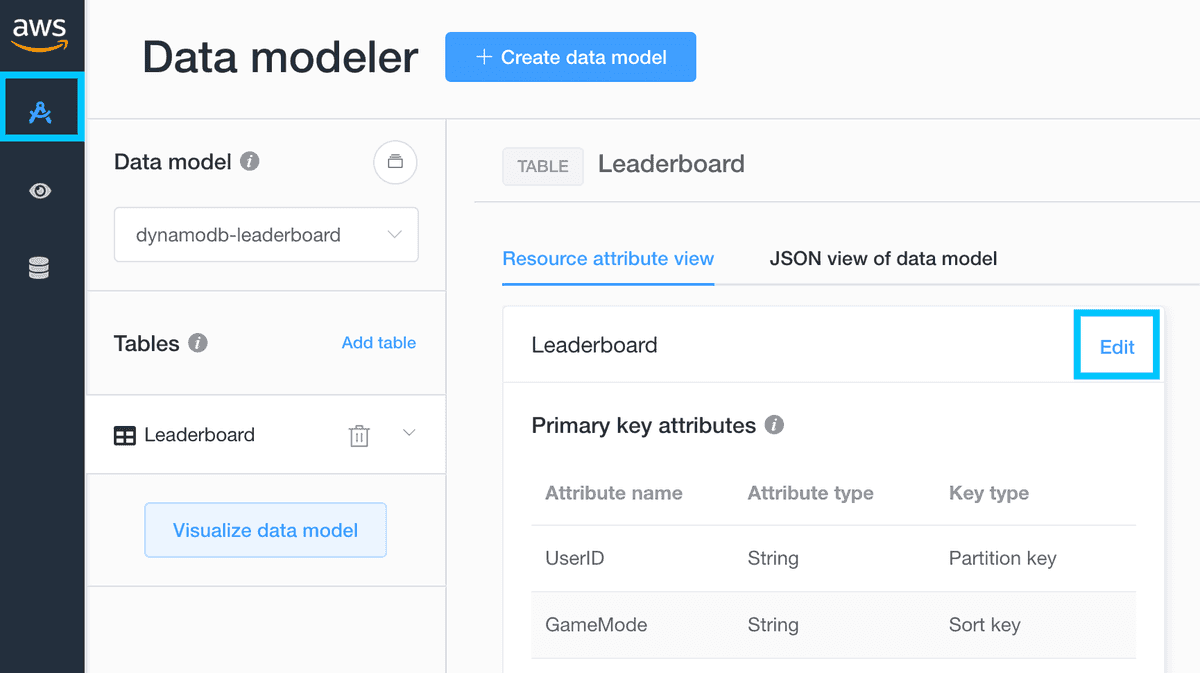

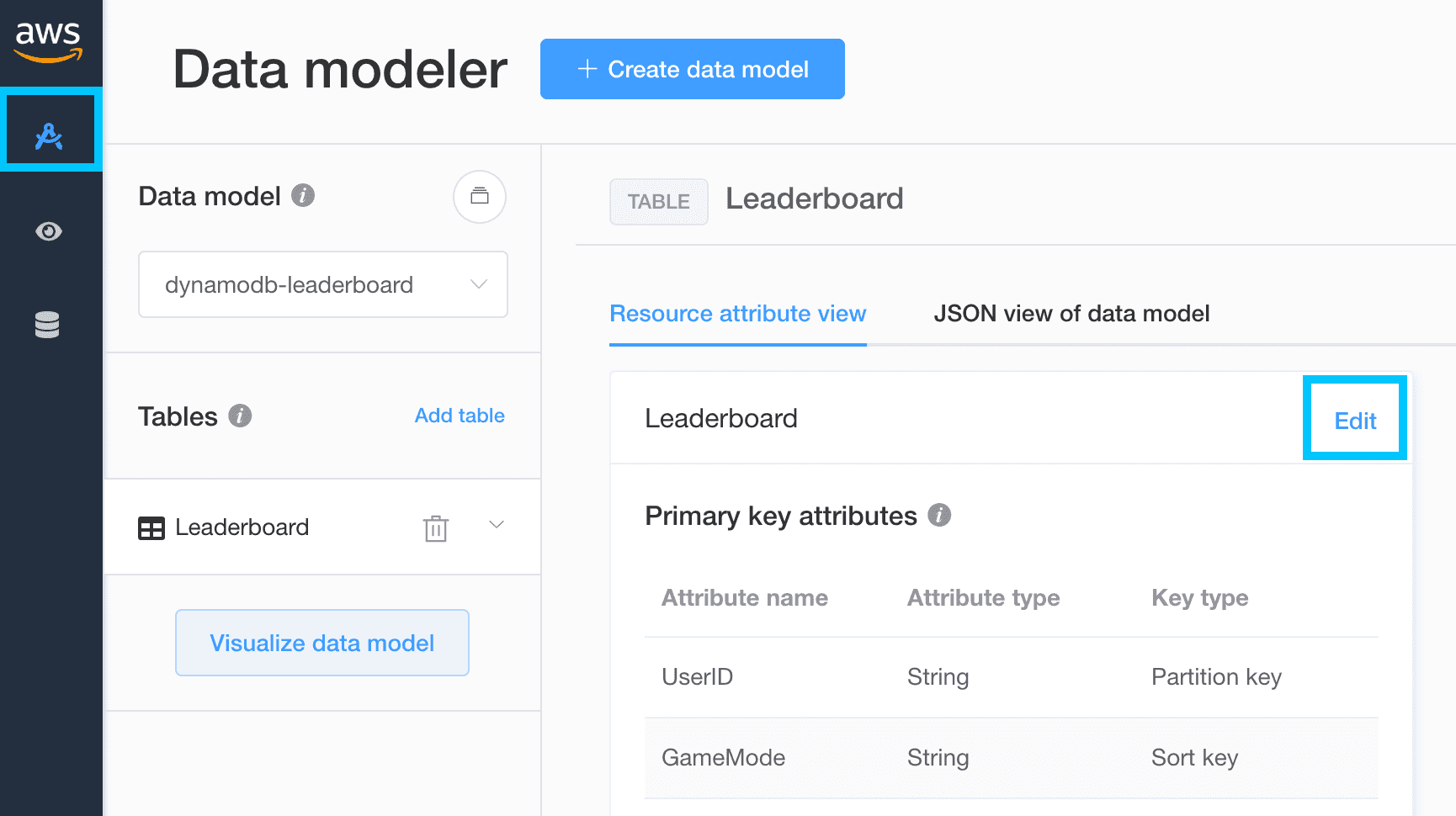

NoSQL Workbench edit existing model
NoSQL Workbench edit existing model

Create a new GSI and setup the schema as follows

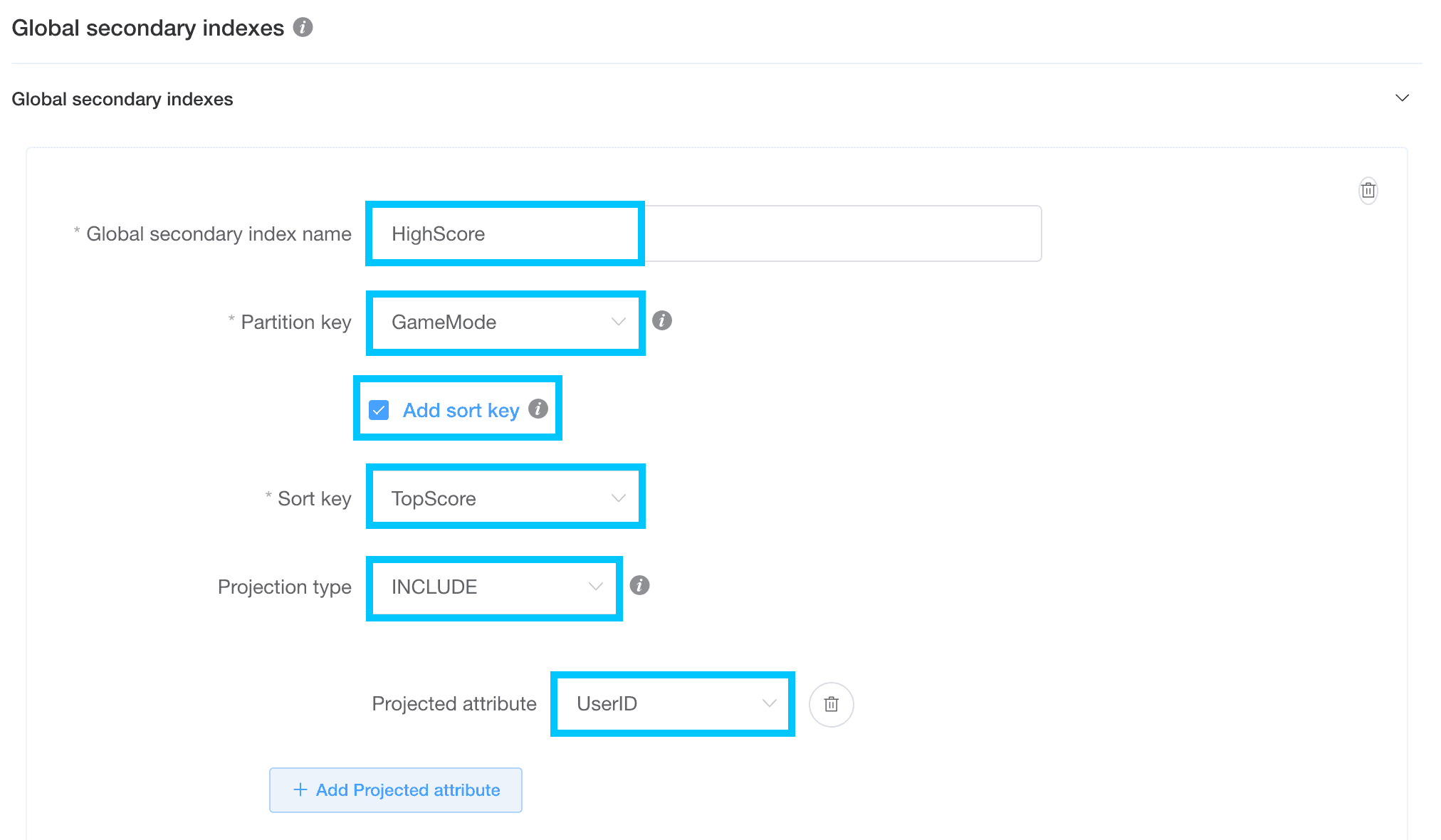

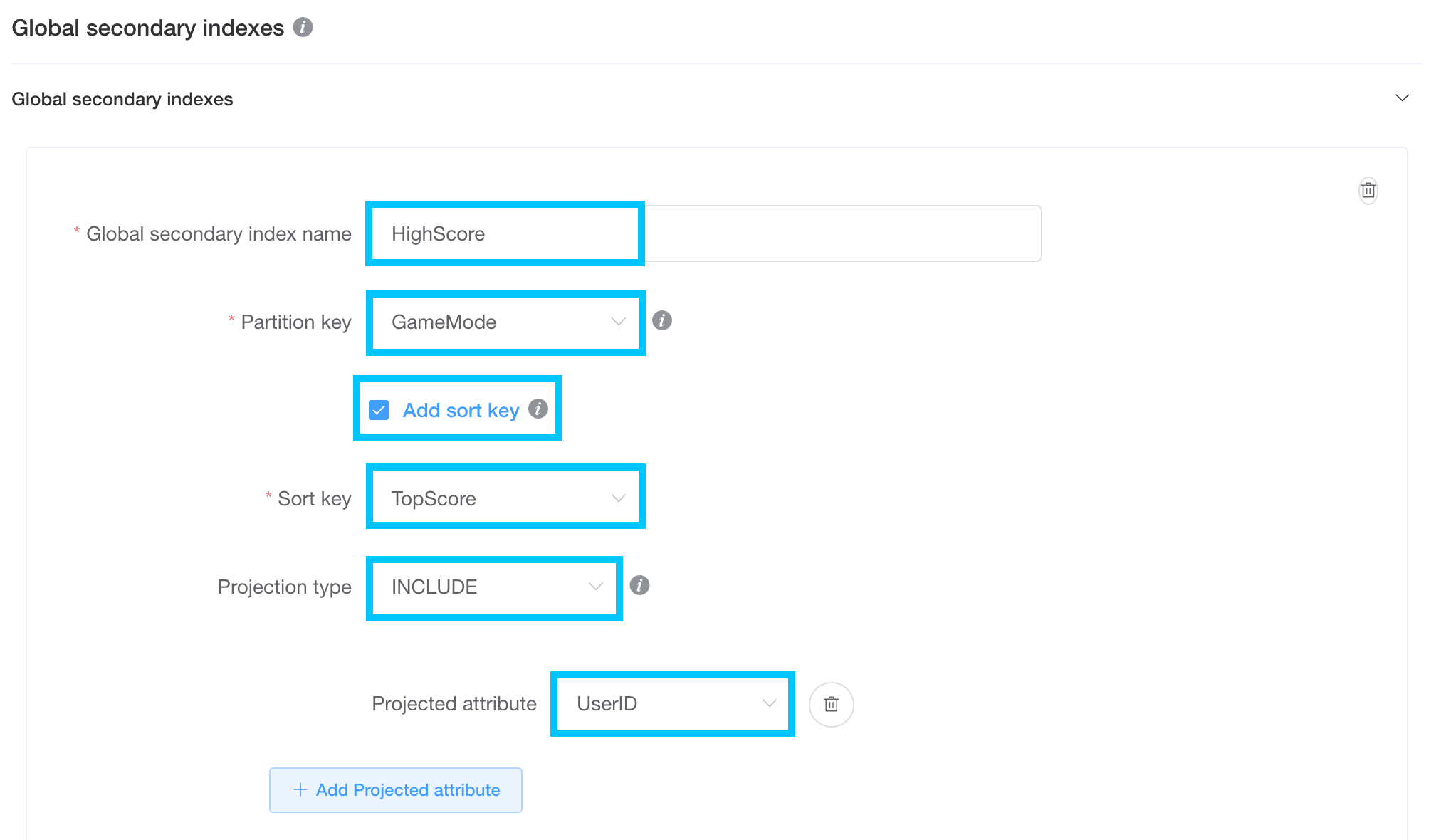

NoSQL Workbench add GSI
NoSQL Workbench add GSI

Save the changes and if you navigate back to the Visualizer you should see the GSI in action

NoSQL Workbench GSI data view
NoSQL Workbench GSI data view

Note: There appears to be a NoSQL Workbench bug when trying to render this GSI. It might be fixed in the future however for now you can see what it would look based on the committed schema in DynamoDB below:

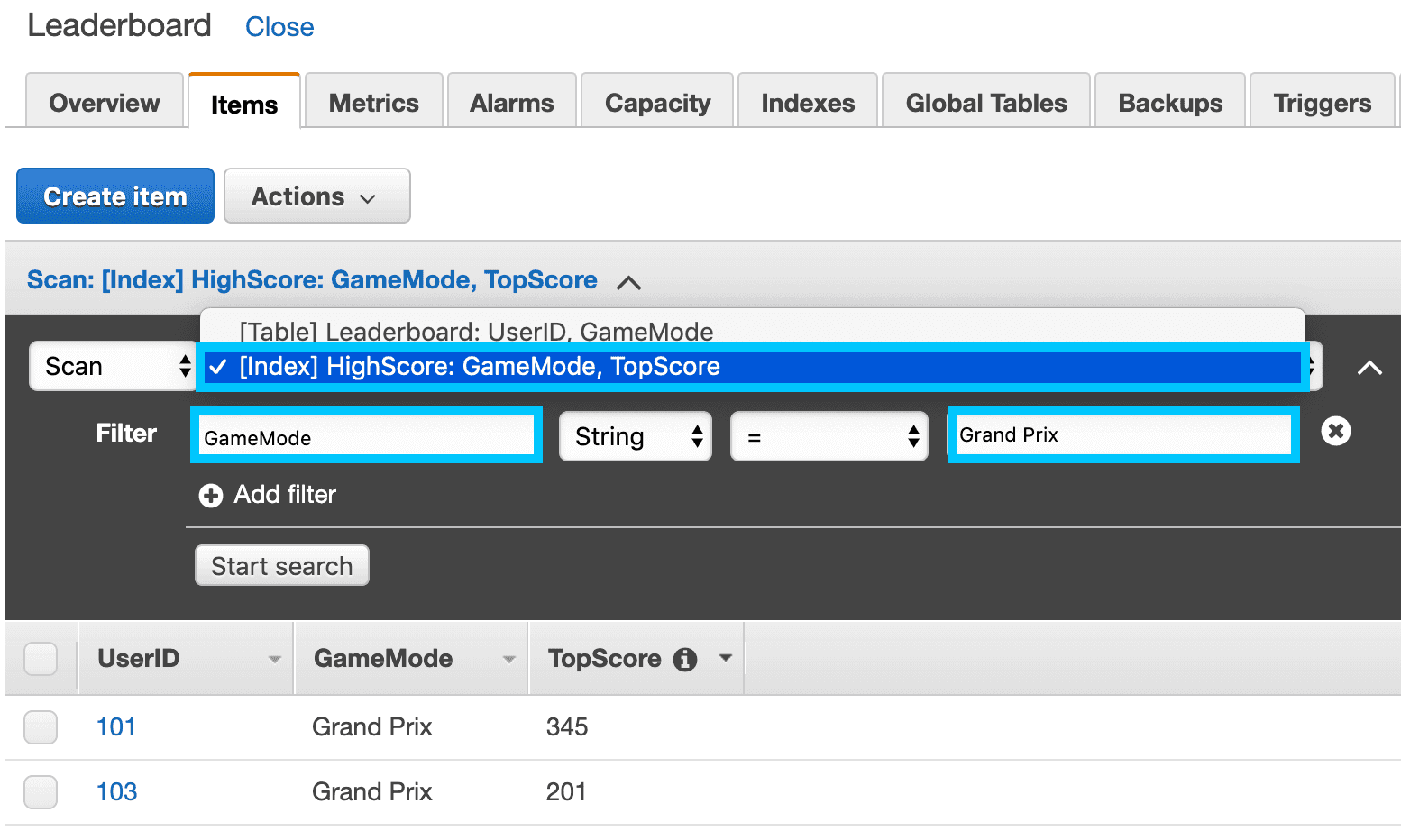

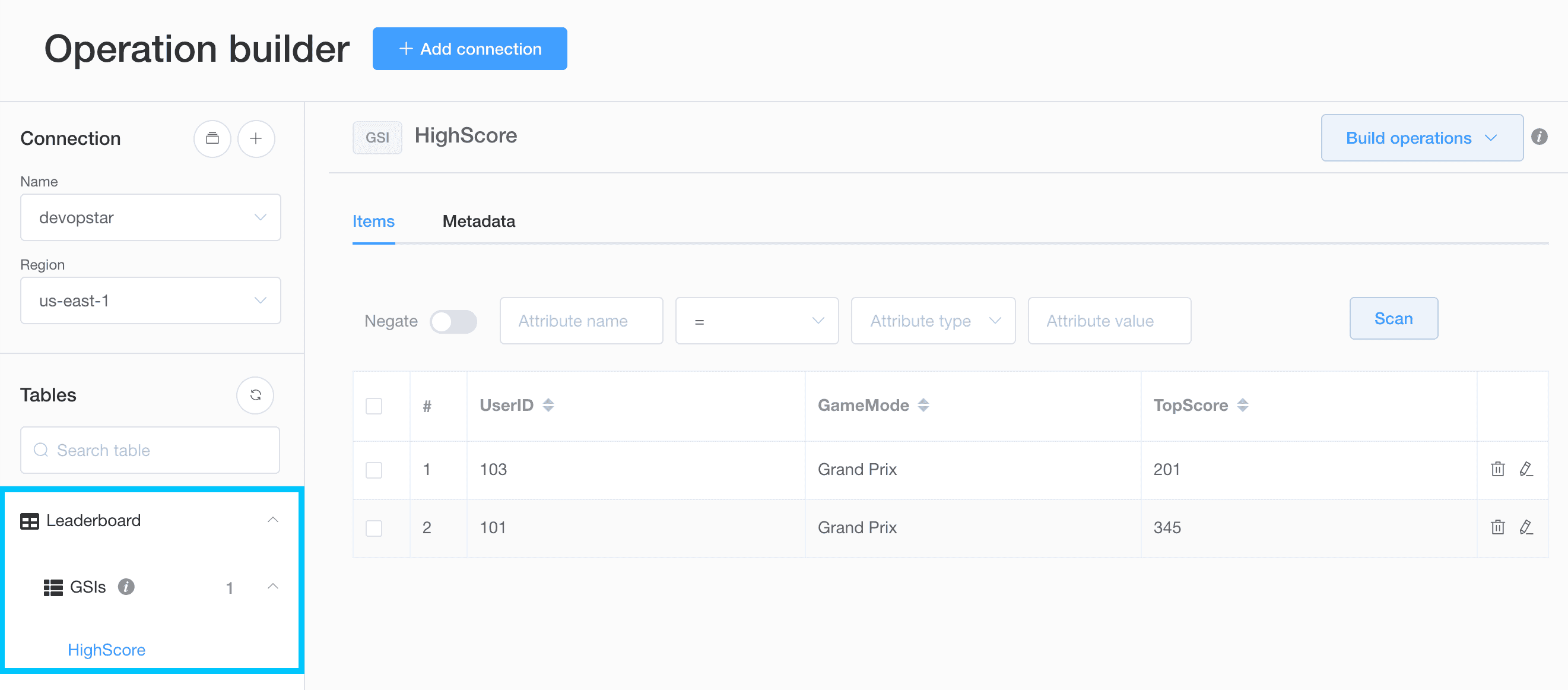

DynamoDB GSI data view
DynamoDB GSI data view

Final Thoughts

You can clean up the running docker container for MySQL by running the following

docker-compose down -v

NoSQL Workbench is a great tool for beginners and experts. It allows you to prototype schema designs in a simple and intuitive way along with acknowledging that data might not already be in NoSQL formats and providing tooling to cater for that.
